Guardrail height 1100 mm

Create calculation

Calculate your roof protection

Use our calculation program to create complete tenders for your roof safety products directly on our website.



Product information: Guardrails height 1100 mm

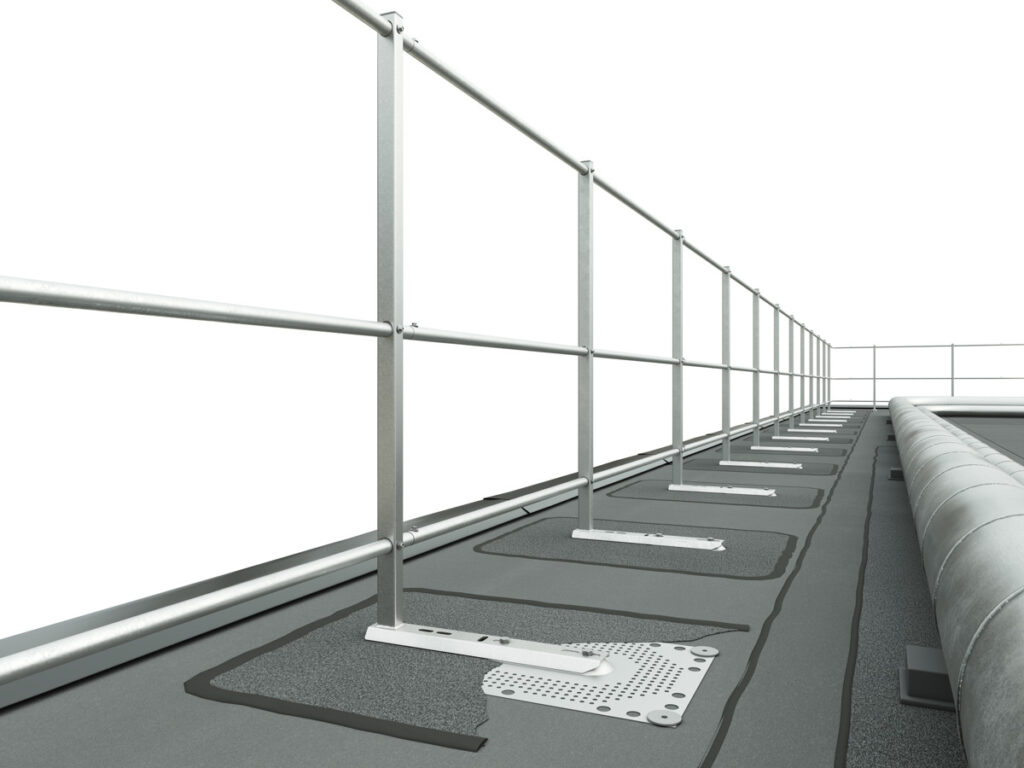

Weland Stål’s guardrail height 1100 mm is used to prevent falls along the eaves, escape routes or floors. The guardrail is made of railing post with feet, crossbars and intermediate rails.

A third tube can be mounted 100 mm up from the attachments to prevent loose objects from falling off the roof. If you want a better kicking plate, it is also possible to complete with toe board that has a height of 100 mm. Maximum distance between the posts is 1200 mm.

The mounting pole for the roof gangway is mounted to the underside of the roof gangway. For roof ladders the mounting pole is mounted with mounting bracket to the inside stiles. The railing can also be mounted directly on the ceiling at low roof slopes (up to 10 degrees) especially with steel liner but also joint mounting can be used.


Guardrail for roof gangway
Show/Hide all info

Guardrail for roof gangwayWeland Stål’s guardrail for roof gangway is a smooth and steady railing to prevent falls along escape routes or floors. The railing is mounted to the underside of the roof bridges and is adapted to ceiling without tilting. Baluster c/c max 1200 mm. Predrilled details - no welding is required.

Pre-drilled lengths of 2.3 m.

Railing post
Railing post Show more infoShow less info
Railing post

Railing post

Railing post - RS1100
Railing post (Lacquered in red) - RRS1100 Railing post (Lacquered in black) - SRS1100
ArtNo. Surface treatment Price
RRS1100 Lacquered in red 557 SEK
SRS1100 Lacquered in black 557 SEK
GRS1100 Lacquered in gray 557 SEK
LRS1100 Special colour * 557 SEK
RS1100 Hot dip Galvanizing 442 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

3.7 kg

Stay (1/section) Show more infoShow less info
Stay (1/section)

Stay railing for gangway

Stay railing for gangway - RS3030
Stay railing for gangway (Lacquered in red) - RRS3030 Stay railing for gangway (Lacquered in black) - SRS3030
ArtNo. Surface treatment Price
RRS3030 Lacquered in red 125 SEK
SRS3030 Lacquered in black 125 SEK
GRS3030 Lacquered in gray 125 SEK
LRS3030 Special colour * 125 SEK
RS3030 Hot dip Galvanizing 111 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

0.31 kg

Locking screw (2 screws/railing post + 1 screw/stay) Show more infoShow less info
Locking screw (2 screws/railing post + 1 screw/stay)

Self-drilling screws 10 ea. 5,5x22

Self-drilling screws 10 ea. 5,5x22 - SS5221
ArtNo. Surface treatment Price
SS5221 Hot dip Galvanizing 61 SEK
Order article

0.07 kg


Self-drilling screws 50 ea. 5,5x22

Self-drilling screws 50 ea. 5,5x22 - SS5225
ArtNo. Surface treatment Price
SS5225 Hot dip Galvanizing 287 SEK

0.35 kg

Set of bolts (2 bolts/baluster + 1 bolt/stay) Show more infoShow less info
Set of bolts (2 bolts/baluster + 1 bolt/stay)

Screw kit 10 ea. M10x20

Screw kit 10 ea. M10x20 - BU1201
ArtNo. Surface treatment Price
BU1201 Hot dip Galvanizing 47 SEK
Order article

0.2 kg

10 ea

M10x20


Screw kit 100 ea. M10x20

Screw kit 100 ea. M10x20 - BU1200
ArtNo. Surface treatment Price
BU1200 Hot dip Galvanizing 330 SEK
Order article

2 kg

100 ea

M10x20

Set of nuts (2 nuts/baluster + 1 nut/stay) Show more infoShow less info
Set of nuts (2 nuts/baluster + 1 nut/stay)

Screw nut kit 10 ea. M10

Screw nut kit 10 ea. M10 - MU1001
ArtNo. Surface treatment Price
MU1001 Hot dip Galvanizing 18 SEK
Order article

0.13 kg

M10


Screw nut kit 100 ea. M10

Screw nut kit 100 ea. M10 - MU1010
ArtNo. Surface treatment Price
MU1010 Hot dip Galvanizing 131 SEK
Order article

1.3 kg

M10

Plastic cover ( 1/baluster) Show more infoShow less info
Plastic cover ( 1/baluster)

Plastic lid

Plastic lid - PL4030
ArtNo. Surface treatment Price
PL4030 gray plastic 11 SEK
Order article

0.05 kg

Railing tube
Tube Ø 27 mm, 2.3 m Show more infoShow less info
Tube Ø 27 mm, 2.3 m

Rail tube 27 mm 2.3m zm

ArtNo. Surface treatment Price
RRR2723 Lacquered in red 139 SEK
SRR2723 Lacquered in black 139 SEK
GRR2723 Lacquered in gray 139 SEK
LRR2723 Special colour * 139 SEK
RR2723 Hot dip Galvanizing 135 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

2.2 kg

2350 mm

Corner, 90° bend Show more infoShow less info
Corner, 90° bend

90° Tube Bend 27mm

90° Tube Bend 27mm - RR2790
90° Tube Bend 27mm (Lacquered in red) - RRR2790 90° Tube Bend 27mm (Lacquered in black) - SRR2790 90° Tube Bend 27mm (Lacquered in gray) - GRR2790
ArtNo. Surface treatment Price
RRR2790 Lacquered in red 288 SEK
SRR2790 Lacquered in black 288 SEK
GRR2790 Lacquered in gray 288 SEK
LRR2790 Special colour * 288 SEK
RR2790 Hot dip Galvanizing 258 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

0.6 kg

Set of screws (2 screws / joint) Show more infoShow less info
Set of screws (2 screws / joint)

Self-drilling screws 10 ea. 5,5x22

Self-drilling screws 10 ea. 5,5x22 - SS5221
ArtNo. Surface treatment Price
SS5221 Hot dip Galvanizing 61 SEK
Order article

0.07 kg


Self-drilling screws 50 ea. 5,5x22

Self-drilling screws 50 ea. 5,5x22 - SS5225
ArtNo. Surface treatment Price
SS5225 Hot dip Galvanizing 287 SEK

0.35 kg

Plastic cover (to 27 mm tube)(2 pieces/rail) Show more infoShow less info
Plastic cover (to 27 mm tube)(2 pieces/rail)

Plastic cover

Plastic cover - PL0027
ArtNo. Surface treatment Price
PL0027 gray plastic 6 SEK

0.04 kg

Terminating guard
Terminating guard Show more infoShow less info
Terminating guard

End Bend with screw

End Bend with screw - AB1100
End Bend with screw (Lacquered in red) - RAB1100 End Bend with screw (Lacquered in black) - SAB1100
ArtNo. Surface treatment Price
RAB1100 Lacquered in red 250 SEK
SAB1100 Lacquered in black 250 SEK
GAB1100 Lacquered in gray 250 SEK
LAB1100 Special colour * 250 SEK
AB1100 Hot dip Galvanizing 207 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

2.2 kg

Set of bolts for terminating guard (1 set/loop) Show more infoShow less info
Set of bolts for terminating guard (1 set/loop)

Screw kit

Screw kit - UB0850
ArtNo. Surface treatment Price
UB0850 Hot dip Galvanizing 26 SEK
Order article

0.11 kg


Guardrail for roof ladder
Show/Hide all info

Guardrail for roof ladderWeland Stål’s barrier for roof ladder is easy to install and a reliable railing to prevent falls along escape routes or floors. The railing is mounted with brackets to the stage side and is adapted to the roof angle. Baluster c/c max 1200 mm. Predrilled details - no welding is required.

Pre-drilled lengths of 2.3 m.

Railing post
Railing post Show more infoShow less info
Railing post

Railing post

Railing post - RS1100
Railing post (Lacquered in red) - RRS1100 Railing post (Lacquered in black) - SRS1100
ArtNo. Surface treatment Price
RRS1100 Lacquered in red 557 SEK
SRS1100 Lacquered in black 557 SEK
GRS1100 Lacquered in gray 557 SEK
LRS1100 Special colour * 557 SEK
RS1100 Hot dip Galvanizing 442 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

3.7 kg

Locking screw (2 screws/railing post) Show more infoShow less info
Locking screw (2 screws/railing post)

Self-drilling screws 10 ea. 5,5x22

Self-drilling screws 10 ea. 5,5x22 - SS5221
ArtNo. Surface treatment Price
SS5221 Hot dip Galvanizing 61 SEK
Order article

0.07 kg


Self-drilling screws 50 ea. 5,5x22

Self-drilling screws 50 ea. 5,5x22 - SS5225
ArtNo. Surface treatment Price
SS5225 Hot dip Galvanizing 287 SEK

0.35 kg

Set of bolts (4 bolts/baluster) Show more infoShow less info
Set of bolts (4 bolts/baluster)

Screw kit 10 ea. M10x20

Screw kit 10 ea. M10x20 - BU1201
ArtNo. Surface treatment Price
BU1201 Hot dip Galvanizing 47 SEK
Order article

0.2 kg

10 ea

M10x20


Screw kit 100 ea. M10x20

Screw kit 100 ea. M10x20 - BU1200
ArtNo. Surface treatment Price
BU1200 Hot dip Galvanizing 330 SEK
Order article

2 kg

100 ea

M10x20

Set of nuts (4 nuts/baluster) Show more infoShow less info
Set of nuts (4 nuts/baluster)

Screw nut kit 10 ea. M10

Screw nut kit 10 ea. M10 - MU1001
ArtNo. Surface treatment Price
MU1001 Hot dip Galvanizing 18 SEK
Order article

0.13 kg

M10


Screw nut kit 100 ea. M10

Screw nut kit 100 ea. M10 - MU1010
ArtNo. Surface treatment Price
MU1010 Hot dip Galvanizing 131 SEK
Order article

1.3 kg

M10

Mount for ladder (2/baluster) Show more infoShow less info
Mount for ladder (2/baluster)

Holder type 4

Holder type 4 - TS4000
Holder type 4 (Lacquered in red) - RTS4000 Holder type 4 (Lacquered in black) - STS4000
ArtNo. Surface treatment Price
RTS4000 Lacquered in red 54 SEK
STS4000 Lacquered in black 54 SEK
GTS4000 Lacquered in gray 54 SEK
LTS4000 Special colour * 54 SEK
TS4000 Hot dip Galvanizing 46 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

0.53 kg

Plastic cover (1/baluster) Show more infoShow less info
Plastic cover (1/baluster)

Plastic lid

Plastic lid - PL4030
ArtNo. Surface treatment Price
PL4030 gray plastic 11 SEK
Order article

0.05 kg

Railing tube
Tube Ø 27 mm, 2.3 m Show more infoShow less info
Tube Ø 27 mm, 2.3 m

Rail tube 27 mm 2.3m zm

ArtNo. Surface treatment Price
RRR2723 Lacquered in red 139 SEK
SRR2723 Lacquered in black 139 SEK
GRR2723 Lacquered in gray 139 SEK
LRR2723 Special colour * 139 SEK
RR2723 Hot dip Galvanizing 135 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

2.2 kg

2350 mm

Corner, 90° bend Show more infoShow less info
Corner, 90° bend

90° Tube Bend 27mm

90° Tube Bend 27mm - RR2790
90° Tube Bend 27mm (Lacquered in red) - RRR2790 90° Tube Bend 27mm (Lacquered in black) - SRR2790 90° Tube Bend 27mm (Lacquered in gray) - GRR2790
ArtNo. Surface treatment Price
RRR2790 Lacquered in red 288 SEK
SRR2790 Lacquered in black 288 SEK
GRR2790 Lacquered in gray 288 SEK
LRR2790 Special colour * 288 SEK
RR2790 Hot dip Galvanizing 258 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

0.6 kg

Set of screws (2 screws / joint) Show more infoShow less info
Set of screws (2 screws / joint)

Self-drilling screws 10 ea. 5,5x22

Self-drilling screws 10 ea. 5,5x22 - SS5221
ArtNo. Surface treatment Price
SS5221 Hot dip Galvanizing 61 SEK
Order article

0.07 kg


Self-drilling screws 50 ea. 5,5x22

Self-drilling screws 50 ea. 5,5x22 - SS5225
ArtNo. Surface treatment Price
SS5225 Hot dip Galvanizing 287 SEK

0.35 kg

Plastic cover (to 27 mm tube)(2 pieces/rail) Show more infoShow less info
Plastic cover (to 27 mm tube)(2 pieces/rail)

Plastic cover

Plastic cover - PL0027
ArtNo. Surface treatment Price
PL0027 gray plastic 6 SEK

0.04 kg

Terminating guard
Terminating guard Show more infoShow less info
Terminating guard

End Bend with screw

End Bend with screw - AB1100
End Bend with screw (Lacquered in red) - RAB1100 End Bend with screw (Lacquered in black) - SAB1100
ArtNo. Surface treatment Price
RAB1100 Lacquered in red 250 SEK
SAB1100 Lacquered in black 250 SEK
GAB1100 Lacquered in gray 250 SEK
LAB1100 Special colour * 250 SEK
AB1100 Hot dip Galvanizing 207 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

2.2 kg

Set of bolts for terminating guard (for 1) Show more infoShow less info
Set of bolts for terminating guard (for 1)

Screw kit

Screw kit - UB0850
ArtNo. Surface treatment Price
UB0850 Hot dip Galvanizing 26 SEK
Order article

0.11 kg


Guardrail for roofs
Show/Hide all info

Guardrail for roofsWeland Stål’s guardrail for roof is a railing that is adapted to enhance security when it snows more than 50 cm on the roof. The higher railing gives better protection when it snows because the high altitude keeps the railing above the snow. The railing is best suited to felt roofs.

Railing post
Railing post Show more infoShow less info
Railing post

Railing post

Railing post - RS1100
Railing post (Lacquered in red) - RRS1100 Railing post (Lacquered in black) - SRS1100
ArtNo. Surface treatment Price
RRS1100 Lacquered in red 557 SEK
SRS1100 Lacquered in black 557 SEK
GRS1100 Lacquered in gray 557 SEK
LRS1100 Special colour * 557 SEK
RS1100 Hot dip Galvanizing 442 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

3.7 kg

Locking screw (2 screws/railing post) Show more infoShow less info
Locking screw (2 screws/railing post)

Self-drilling screws 10 ea. 5,5x22

Self-drilling screws 10 ea. 5,5x22 - SS5221
ArtNo. Surface treatment Price
SS5221 Hot dip Galvanizing 61 SEK
Order article

0.07 kg


Self-drilling screws 50 ea. 5,5x22

Self-drilling screws 50 ea. 5,5x22 - SS5225
ArtNo. Surface treatment Price
SS5225 Hot dip Galvanizing 287 SEK

0.35 kg

Set of bolts (4 bolts/baluster) Show more infoShow less info
Set of bolts (4 bolts/baluster)

Screw kit 10 ea. M10x20

Screw kit 10 ea. M10x20 - BU1201
ArtNo. Surface treatment Price
BU1201 Hot dip Galvanizing 47 SEK
Order article

0.2 kg

10 ea

M10x20


Screw kit 100 ea. M10x20

Screw kit 100 ea. M10x20 - BU1200
ArtNo. Surface treatment Price
BU1200 Hot dip Galvanizing 330 SEK
Order article

2 kg

100 ea

M10x20

Set of nuts (4 nuts/baluster) Show more infoShow less info
Set of nuts (4 nuts/baluster)

Screw nut kit 10 ea. M10

Screw nut kit 10 ea. M10 - MU1001
ArtNo. Surface treatment Price
MU1001 Hot dip Galvanizing 18 SEK
Order article

0.13 kg

M10


Screw nut kit 100 ea. M10

Screw nut kit 100 ea. M10 - MU1010
ArtNo. Surface treatment Price
MU1010 Hot dip Galvanizing 131 SEK
Order article

1.3 kg

M10

Plastic cover (1/baluster) Show more infoShow less info
Plastic cover (1/baluster)

Plastic lid

Plastic lid - PL4030
ArtNo. Surface treatment Price
PL4030 gray plastic 11 SEK
Order article

0.05 kg

Railing tube
Tube Ø 27 mm, 2.3 m Show more infoShow less info
Tube Ø 27 mm, 2.3 m

Rail tube 27 mm 2.3m zm

ArtNo. Surface treatment Price
RRR2723 Lacquered in red 139 SEK
SRR2723 Lacquered in black 139 SEK
GRR2723 Lacquered in gray 139 SEK
LRR2723 Special colour * 139 SEK
RR2723 Hot dip Galvanizing 135 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

2.2 kg

2350 mm

Corner, 90° bend Show more infoShow less info
Corner, 90° bend

90° Tube Bend 27mm

90° Tube Bend 27mm - RR2790
90° Tube Bend 27mm (Lacquered in red) - RRR2790 90° Tube Bend 27mm (Lacquered in black) - SRR2790 90° Tube Bend 27mm (Lacquered in gray) - GRR2790
ArtNo. Surface treatment Price
RRR2790 Lacquered in red 288 SEK
SRR2790 Lacquered in black 288 SEK
GRR2790 Lacquered in gray 288 SEK
LRR2790 Special colour * 288 SEK
RR2790 Hot dip Galvanizing 258 SEK

* = A set fee of 3000 SEK will be added for each configuration

Order article

0.6 kg

Set of screws (2 screws / joint) Show more infoShow less info
Set of screws (2 screws / joint)

Self-drilling screws 10 ea. 5,5x22

Self-drilling screws 10 ea. 5,5x22 - SS5221
ArtNo. Surface treatment Price
SS5221 Hot dip Galvanizing 61 SEK
Order article

0.07 kg


Self-drilling screws 50 ea. 5,5x22

Self-drilling screws 50 ea. 5,5x22 - SS5225
ArtNo. Surface treatment Price
SS5225 Hot dip Galvanizing 287 SEK

0.35 kg

Plastic cover (to 27 mm tube)(2 pieces/rail) Show more infoShow less info
Plastic cover (to 27 mm tube)(2 pieces/rail)

Plastic cover

Plastic cover - PL0027
ArtNo. Surface treatment Price
PL0027 gray plastic 6 SEK

0.04 kg


Related products

Surface treatment

Products are stocked in:

  • Hot dip galvanised
  • Painted red
    (NCS 5040-Y80R)
  • Painted black
    (RAL 9005)
  • Painted gray
    (RAL 7011)

Other colours, copper and stainless steel are available by order.

We keep part of our stainless steel range in stock.




Documentation

Brochures

Assembly Instructions

Maintenance Instructions

Maintenance Instructions - FDU documentation

Maintenance Instructions - FDU documentation for Weland Stål AB

  • 12/09/2013
  • 5
  • basis for design & calculations; materials and manufacturing; surface treatment; handling; maintenance; care of hot dip galvanised products; care of Painted surfaces; care of wooden parts; care of mats on steps or landings; care of terrazzo
  • pdf

CAD details

Certificates

Load tables

Films


Reference images

Search for images

Show page of 1

Results are filtered at:


  • be00002762.jpg


    Guardrails on roof.

    10/01/2017


    Included in gallery:

    Guardrails height 1100

  • be00002481.jpg


    Guardrails on roof.

    29/01/2015


    Included in gallery:

    Guardrails height 1100

  • be00002482.jpg


    Guardrails on roof.

    29/01/2015


    Included in gallery:

    Guardrails height 1100

  • be00001765.jpg


    Roof gangway with railing

    19/01/2011


    Included in gallery:

    Guardrails height 1100

  • be00001659.jpg


    30/08/2010


    Included in gallery:

    Guardrails height 1100

  • be00001654.jpg


    Roof safety products on slate roof. Special fixing.

    30/08/2010


    Included in gallery:

    Guardrails height 1100

  • be00001283.jpg


    Railing for roof gangway made of profile grating.

    30/08/2010


    Included in gallery:

    Guardrails height 1100

  • be00001812.jpg


    Projects in Göteborg. Cat ladder with standing seam mount. Roof gangway Guardrail for roof gangway, Snow guard made of profile plating, Ridge rails and eaves railing

    14/09/2011


    Included in gallery:

    Guardrails height 1100

  • be00001822.jpg


    A collection of roof safety items.

    24/08/2011


    Included in gallery:

    Guardrails height 1100


View gallery
